| 브랜드 이름: | BOE |
| 모델 번호: | NE160QDM-NY1 |
| MOQ: | 10PCS |
| 가격: | negotiable |
| 지불 조건: | T/T,W,웨스턴 유니온,MoneyGram |
| 공급 능력: | 주당 3000pc |

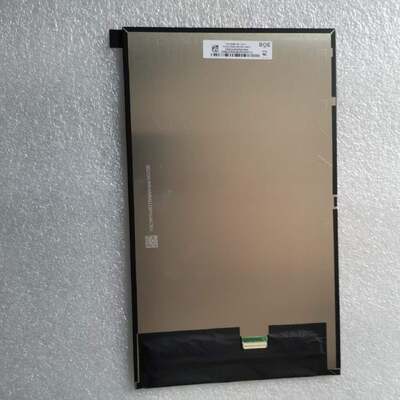

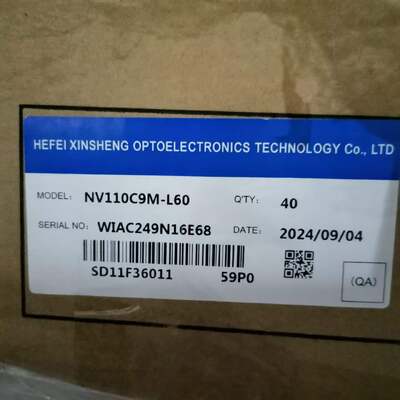

| Brand | BOE | Model | NV110C9M-L60 |
|---|---|---|---|
| Diagonal Size | 11.0 inch | Type | a-Si TFT-LCD, LCM |
| Pixel Number | 1200(RGB)×2000, 3:5 | Dot Layout | RGB Vertical Stripe |
| Active Area | 143.1(H)×238.5(V) mm | Physical Size | 148.4(H)×247.1(V)×3.7(D) mm |
| Mass | 130g (Max.) | Surface Coating | Hard coating |
| Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1400:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 20 (Max.)(Tr+Td) mm |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M, 72% NTSC | Designed For | |
| Power Usage | - | Light Source | 9S4P WLED, 15K hrs, Without Driver |
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | MIPI (4 data lanes), 51 pins Connector |
|---|---|
| Power Supply | 1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE) |
| Operating Temperature | 0 ~ 50 °C |
|---|---|
| Storage Temperature | -20 ~ 60 °C |
