| 브랜드 이름: | BOE |
| 모델 번호: | AV174WUM-N10 |
| MOQ: | 10PCS |
| 가격: | negotiable |
| 지불 조건: | T/T,W,웨스턴 유니온,MoneyGram |
| 공급 능력: | 주당 3000pc |
| Brand | BOE |
| Model P/N | AV174WUM-N10 |
| Diagonal Size | 17.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1200*1920 (RGB), WUXGA, 130PPI |
| Active Area | 234(W) * 374.4(H) mm |
| Outline Size | 250.8(W) * 386.8(H) * 19.1(D) mm |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 40ms (Max.) (Tr+Td) |
| Display Colors | 16.7M, 71% NTSC |
| Lamp Type | 12S6P WLED, With LED Driver |
| Frequency | 75Hz |
| Touch Screen | Without |

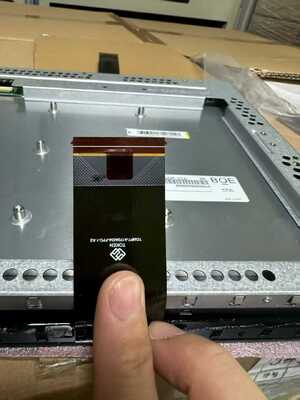

| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 90°C |
