| 브랜드 이름: | AUO |
| 모델 번호: | C089KAN01.0 |
| MOQ: | 10PCS |
| 가격: | negotiable |
| 지불 조건: | T/T,W,웨스턴 유니온,MoneyGram |
| 공급 능력: | 주당 3000pc |

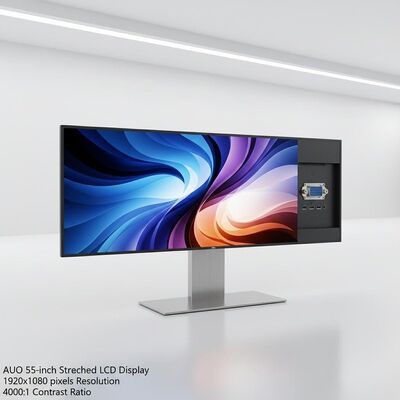

55-inch diagonal a-Si TFT-LCD display panel with 1920*1080 FHD resolution, 40 PPI pixel density, and 59-pin LVDS interface. Designed for digital signage applications with landscape/portrait orientation capability.
| Brand | AUO |
| Model Number | P550HVN06.1 CELL |
| Diagonal Size | 55 inches |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)*1080 (FHD), 40 PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1209.6mm * 680.4mm |
| Outline Dimensions | 1228.8mm * 699.4mm * 1.4mm |
| Surface Reflection | 1.45% (Max.) |
| Contrast Ratio | 4000:1 (Typical) |
| Response Time | 8ms (G to G, Typical) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 6.0% (Typical, with Polarizer) |
| Display Colors | 16.7 Million |
| Backlight | No Backlight (CELL only) |
| Refresh Rate | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (2 channel, 10-bit), 59-pin connector |
| Input Voltage | 12.0V (Typical) |
| Panel Weight | 2.53 kg (Typical) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
