제품 세부 정보

> 상품 >
PC LCD 모듈
>
innolux PC lcd model 21.5Inch M215HGE-L31 1080x1920Pixels FHD 102PPI Desktop pc lcd 30pin

innolux PC lcd model 21.5Inch M215HGE-L31 1080x1920Pixels FHD 102PPI Desktop pc lcd 30pin

브랜드 이름: BOE
모델 번호: M215HGE-L31
MOQ: 10PCS
가격: negotiable
포장에 대한 세부 사항: 산업 포장
지불 조건: T/T, W, Western Union, MoneyGram
자세한 정보
원래 장소:
중국
인증:
Rohs,CE,FCC
품질:
새로운 원본
패키지:
오리지널 산업 포장
해결:
1280*800pixels
스타일:
30pin ips
명도:
250cd/m2
색상:
16.7M
명암비:
1000 : 1
직장 생활:
30k 시간
화면 크기:
21.5 인치
터치스크린:
없이
공급 능력:
주당 3000pc
제품 설명

innolux PC lcd model 21.5Inch M215HGE-L31 1080x1920Pixels FHD 102PPI Desktop pc lcd 30pin



M215HGE-L31 is a 21.5" diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einkcd in the following: WLED Backlight, Upside I/F, Matte , Energy Star 8.0 Compliance. Based on its features, Einklcd recommend that this model be applied to Desktop Monitor, Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2019, Now this model is discontinued. We inputted this model's specification on Apr 7 2020 for the first time, and the latest update on Sep 1 2025. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with Chimei Innolux or it's agent to learn lateast production and specification detail of M215HGE-L31. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand: Chimei Innolux
Model P/N: M215HGE-L31
Compatible Model 4 Compatible
Diagonal Size: 21.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1080, FHD 102PPI
Pixel Format: RGB Vertical Stripe
Active Area 476.64(W)×268.11(H) mm
Bezel Opening479.8(W)×271.3(H) mm
Outline(mm):495.6(W)×292.2(H)×11.5(D)
Luminance:250 (Typ.)(cd/m²)
Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Good View at 6 o'clock
Color Depth 16.7M 72% NTSC
Mass:1.72±0.17Kgs
Refresh Rate:75Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Treatment: Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio:1000 : 1 (Typ.) (TM)
Work Mode: TN, Normally White, Transmissive,IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich,VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Response: 3.5/1.5 (Typ.)(Tr/Td) ms
Backlight: 4 strings WLED , 40K hours , No Driver
Used for: Desktop Monitor, Industrial
TouchscreenWithout
Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C

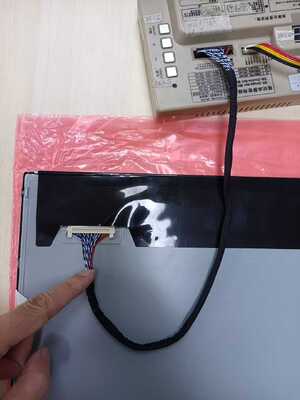

innolux PC lcd model 21.5Inch M215HGE-L31 1080x1920Pixels FHD 102PPI Desktop pc lcd 30pin 0

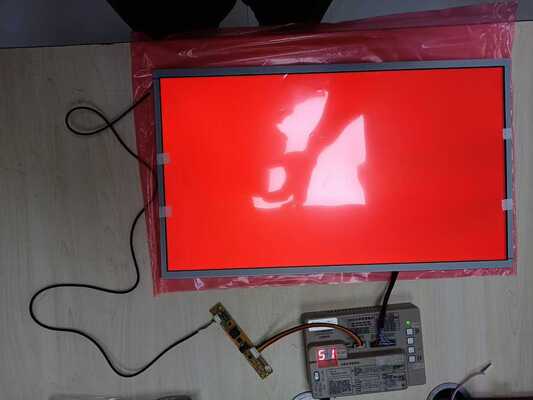

innolux PC lcd model 21.5Inch M215HGE-L31 1080x1920Pixels FHD 102PPI Desktop pc lcd 30pin 1
