| 브랜드 이름: | BOE |
| 모델 번호: | NV125FHM-N85 |
| MOQ: | 10pcs |
| 가격: | negotiable |
| 포장에 대한 세부 사항: | 산업 포장 |
| 지불 조건: | T/T, W, Western Union, MoneyGram |

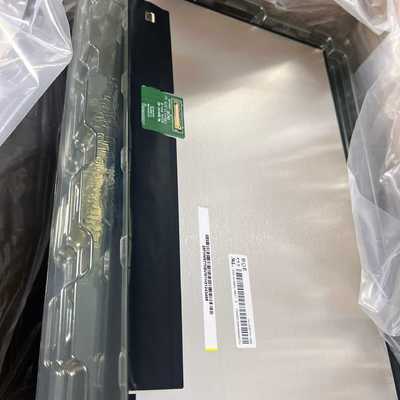

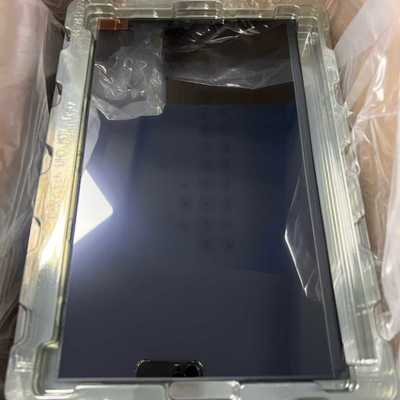

BOE 12.5Inch tablet LCD Display Panel NV125FHM-N85 1920x1080Pixels FHD 176PPI lcd tablet 30pin
The NV125FHM-N85 (Product Code: BOE0882) is a 12.5 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einkl in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte . Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in einlcd this model mass production on Q4, 2019, Now this model is in production. We inputted this model's specification on Mar 3 2020 for the first time, and the latest update on Apr 7 2025. If you want to embed NV125FHM-N85 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The NV125FHM-N85 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:BOE
Model P/N:NV125FHM-N85
Diagonal Size: 12.5"
Panel Type:a-Si TFT-LCD, LCM
Resolution1920(RGB)×1080, FHD 176PPI
Pixel Format:RGB Vertical Stripe
Active Area 276.48(W)×155.52(H) mm
Bezel Opening-
Outline Dim.282.4(H)×168.72(V)×4.2(D) mm
Treatment: Antiglare
Luminance: 300 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.) (TM)
View Time30 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode: ADS, Normally Black, Transmissive
Support Color16.7M 50% NTSC
Light Source: WLED [9S3P] , 15K hours , With LED Driver
Form Style: Slim (PCBA Bent, T≤3.0mm)
Designed : Laptop
Frame Rate60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel: Without
Interface TypeeDP (2 Lanes) , HBR1 (2.7G/lane) , 30 pins Connector
Power Supply:3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -20 ~ 60 °C
|
|
