PC LCD 모듈

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

모든 범주

의학 엘시디 판넬

저희와 연락

Mr. pippo tian

pippo@ridafone.com

+86 13590447319

지금 연락하세요

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

브랜드 이름:	Sharp
모델 번호:	LQ079L1SX01
MOQ:	10pcs
가격:	negotiable
포장에 대한 세부 사항:	산업 포장
지불 조건:	T/T, W, Western Union, MoneyGram

자세한 정보

제품 설명

자세한 정보

원래 장소:

Rohs,CE,FCC

새로운 원본

오리지널 산업 포장

1536*2048픽셀

50PIN IPS

460cd/m2

16.7m

대비 비율:

1000 : 1

일하는 삶:

15k 시간

70.9인치

램프 유형:

공급 능력:

주당 3000pc

제품 설명

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

The LQ079L1SX01 is a 7.9 inch diagonal Oxide TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by EINKLCD in the following: Portrait type, WLED Backlight , for iPad mini 2. Based on its features, Einklcd recommend that this model be applied to Pad & Tablet, 3D Printer etc.Built-in NT35523 + NT35523 driver IC. According to the information stored in einklcd this model mass production on Q3, 2014, Now this model is discontinued. We inputted this model's specification on Mar 31 2015 for the first time, and the latest update on Sep 20 2023. If you want to embed LQ079L1SX01 LCM in your future product, Einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail. The LQ079L1SX01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:Sharp

Model P/N: LQ079L1SX01

Diagonal Size: 7.9"

Panel Type: Oxide TFT-LCD, LCM

Resolution: 1536(RGB)×2048, QXGA 325PPI Pixel

Format: RGB Vertical Stripe

Active Area: 119.808(W)×159.744(H) mm

Bezel Opening-

Outline Size:125.55(W)×171.3(H)×3.15(D) mm Treatment -

Luminance:460 cd/m² (Typ.)

Contrast Ratio:1000 : 1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Response 35 (Typ.)(Tr+Td) ms

Good View at Symmetry Work Mode IPS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Color Depth 16.7M 70% NTSC Backlight 6S4P WLED , No Driver

Mass 65.0g (Typ.) Used for Pad & Tablet 3D Printer

Refresh Rate :60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen:Without

Signal Type MIPI (2 ch, 4 data lanes) , 50 pins Connector

Voltage Supply 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN)

Max. Ratings Storage Temp.: -30 ~ 70 °C

Operating Temp.: -20 ~ 60 °C

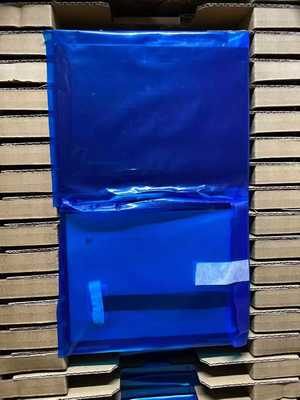

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display 0

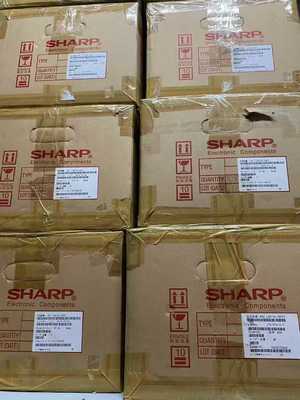

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display 1

디지털 LCD 디스플레이

LCD 디스플레이 패널

LCD 터치 스크린 모듈

제품 세부 정보

집 > 상품 >

PC LCD 모듈

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

모든 범주

산업적 LCD 디스플레이

LCD 터치 스크린 모니터

와이드스크린 LCD 컴퓨터 모니터

PC LCD 모듈

대형 LCD 디스플레이 화면

LCD 텔레비전 패널

스트레치트 LCD 디스플레이

자동차 LCD 디스플레이

E 잉크 디스플레이 모듈

E 잉크 LCD 디스플레이

의학 엘시디 판넬

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

브랜드 이름:	Sharp
모델 번호:	LQ079L1SX01
MOQ:	10pcs
가격:	negotiable
포장에 대한 세부 사항:	산업 포장
지불 조건:	T/T, W, Western Union, MoneyGram

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

브랜드 이름:

Sharp

인증:

Rohs,CE,FCC

모델 번호:

LQ079L1SX01

품질:

새로운 원본

패키지:

오리지널 산업 포장

해결:

1536*2048픽셀

스타일:

50PIN IPS

명도:

460cd/m2

색상:

16.7m

대비 비율:

1000 : 1

일하는 삶:

15k 시간

유형:

LCM

크기:

70.9인치

램프 유형:

LCM

전압:

5.6V

최소 주문 수량:

10pcs

가격:

negotiable

포장 세부 사항:

산업 포장

배달 시간:

4-5 근무일

지불 조건:

T/T, W, Western Union, MoneyGram

공급 능력:

주당 3000pc

제품 설명

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display

Brand:Sharp

Model P/N: LQ079L1SX01

Diagonal Size: 7.9"

Panel Type: Oxide TFT-LCD, LCM

Resolution: 1536(RGB)×2048, QXGA 325PPI Pixel

Format: RGB Vertical Stripe

Active Area: 119.808(W)×159.744(H) mm

Bezel Opening-

Outline Size:125.55(W)×171.3(H)×3.15(D) mm Treatment -

Luminance:460 cd/m² (Typ.)

Contrast Ratio:1000 : 1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Response 35 (Typ.)(Tr+Td) ms

Good View at Symmetry Work Mode IPS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Color Depth 16.7M 70% NTSC Backlight 6S4P WLED , No Driver

Mass 65.0g (Typ.) Used for Pad & Tablet 3D Printer

Refresh Rate :60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen:Without

Signal Type MIPI (2 ch, 4 data lanes) , 50 pins Connector

Voltage Supply 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN)

Max. Ratings Storage Temp.: -30 ~ 70 °C

Operating Temp.: -20 ~ 60 °C

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display 0

Sharp 7.9Inch Tablet Lcd Model LQ079L1SX01 1536X2048P 325PPI 460cd/M2 50PIN 5.6V 3D printer lcd display 1
