| 브랜드 이름: | PVI |
| 모델 번호: | PD050VXBL |
| MOQ: | 10pcs |
| 가격: | negotiable |
| 포장에 대한 세부 사항: | Industrial packing |
| 지불 조건: | T/T,W, Western Union, MoneyGram |

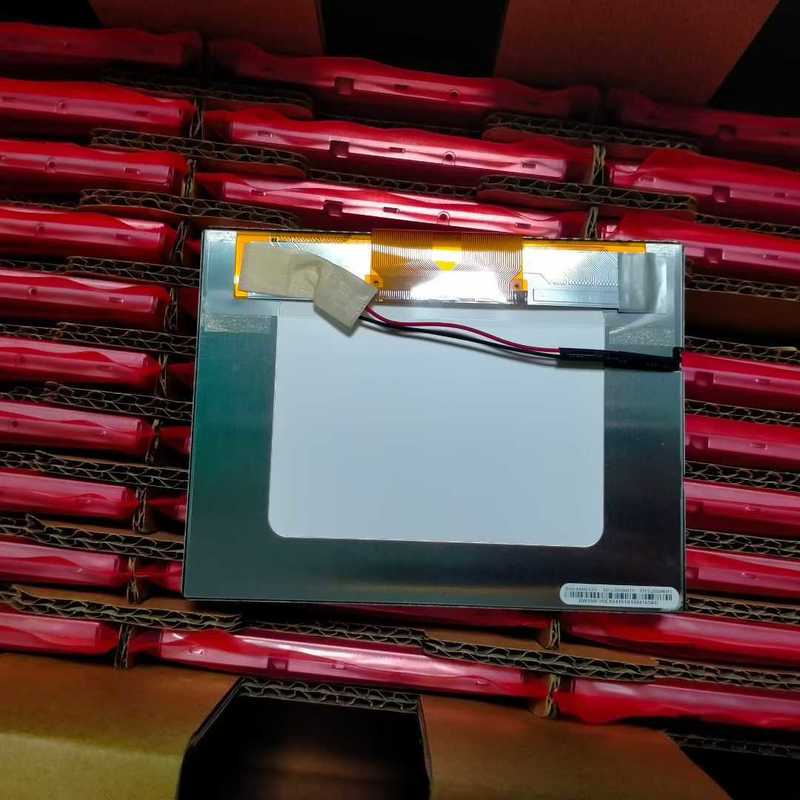

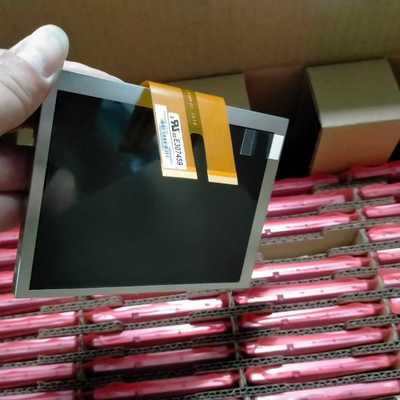

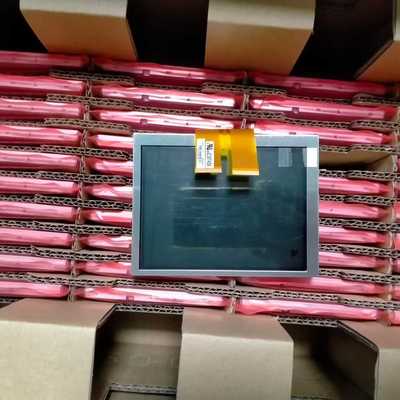

PVI 5inch lcd model PD050VXBL 480*640Pixels 60PIN 160PPI industrial lcd panel
The PD050VXB is a 5.0 inch diagonal a-Si TFT-LCD display panel product from Prime View International Co., Ltd. (hereafter called PVI), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Portrait type, Hight Brightness, WLED Backlight, U/D,L/R Reverse, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2011 and last shippment on Q3, 2016, Now this model is discontinued. We inputted this model's specification on Apr 1 2013 for the first time, and the latest update on Oct 13 2023. If you want to embed PD050VXB LCM in your future product, einklcd strongly recommend that you should contact with PVI or it's agent to learn lateast production and specification detail. The PD050VXB production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand PVI
Model P/N: PD050VXB
Diagonal Size: 5.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution 480×640(RGB), VGA 160PPI
Pixel Format: RGB Horizontal Stripe
Active Area 74.88(W)×101.76(H) mm
Bezel Opening 79.88(W)×106.70(H) mm
Outline Dim.91.4(H)×119.3(V) ×8.2(D) mm
Treatment Antiglare
Luminance 900 cd/m² (Typ.)
Contrast Ratio:600:1 (Typ.) (TM)
View Direction6 o'clock
Response Time: 15/25 (Typ.)(Tr/Td)
Viewing Angle75/75/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode:TN, Normally White, Transmissive
Support Color 262K
Light Source: WLED [3S10P] , 20K hours , W/O Driver
Weight: 116±10g
Designed For Industrial
Frame Rate-Touch Pane: lWithout
Interface TypeTTL (1 ch, 6-bit) , 60 pins FPC
Power Supply 3.3/7.7/15.4/-5.5/3.3V (Typ.)(VDD1/VDD2/VGG/VEE/VCC)
Environment Operating Temperature: -20 ~ 70 °C ;
Storage Temperature: -30 ~ 80 °C
|
|
