NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²

고객 검토
우리는 많은 시간 그들 공장을 방문했습니다. 그들의 작업장은 아주 크 e 잉크 전시 단위는 진짜로 중대합니다!

—— 크리스

우리의 회사는 Ridafone에 많은 시간 주문했습니다. 그들은 좋은 품질에 있는 모든 e 잉크 LCD 디스플레이 품목을 개발하고 일으킵니다.

—— Picado Freddy

제가 지금 온라인 채팅 해요

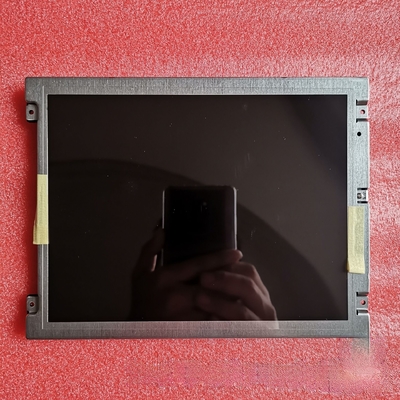

NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²

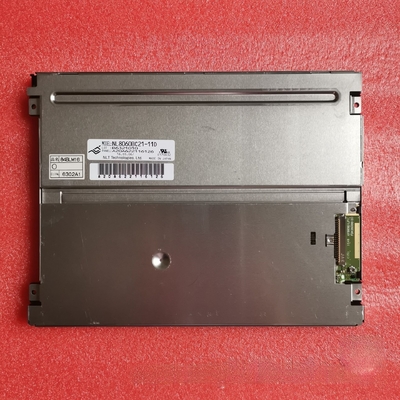

NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²

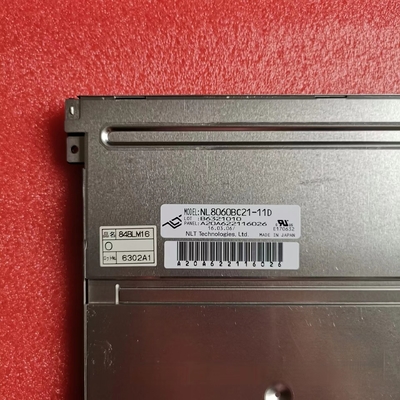

NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m² NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m² NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²

큰 이미지 :  NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²

제품 상세 정보:
Place of Origin: China
브랜드 이름: NEC
인증: Rohs,CE,FCC
Model Number: NL8060BC21-11D
결제 및 배송 조건:
Minimum Order Quantity: 10pcs
가격: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²

설명
품질: 새로운 원본 Package: Original industrial packing
결의안: 800*600pixels style: 20PIN IPS
brightness: 400CD/M2 color: 262k
contrast ratio: 800 :1 working life: 70K Hours

NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m²



NL8060BC21-11D is a 8.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, 180° Reverse, 6/8 bit, Matte , ColorXcell. Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in Einklcd this model mass production on Q3, 2010, Now this model is in production. We inputted this model's specification on Sep 12 2012 for the first time, and the latest update on Sep 20 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail of NL8060BC21-11D. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand:NEC
Model P/N: NL8060BC21-11D
Diagonal Size: 8.4"Panel
Typea-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 119PPI
Pixel Format: RGB Vertical Stripe
Active Area170.4(W)×127.8(H) mm
Bezel Opening:174.0(W)×131.4(H) mm
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
200(W)×152(H) ×8.7(D) mm
400 cd/m² (Typ.)
80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
-
262K/16.7M 40% NTSC
60Hz [Panelook copyright, copy is strictly prohibited]
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
260/280g (Typ./Max.)
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
Antiglare, Hard coating (3H)
800:1 (Typ.) (TM)
TN, Normally White, Transmissive [Panelook copyright, copy is strictly prohibited]
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
3/15 (Typ.)(Tr/Td)
3 strings WLED , 70K hours , Without Driver
Without
Industrial
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

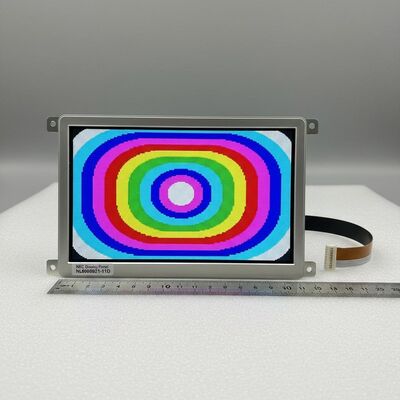

NEC 8.4Inch Industrial LCD Display Panel NL8060BC21-11D 800(RGB)×600 SVGA 119PPI 20P 400 cd/m² 0
